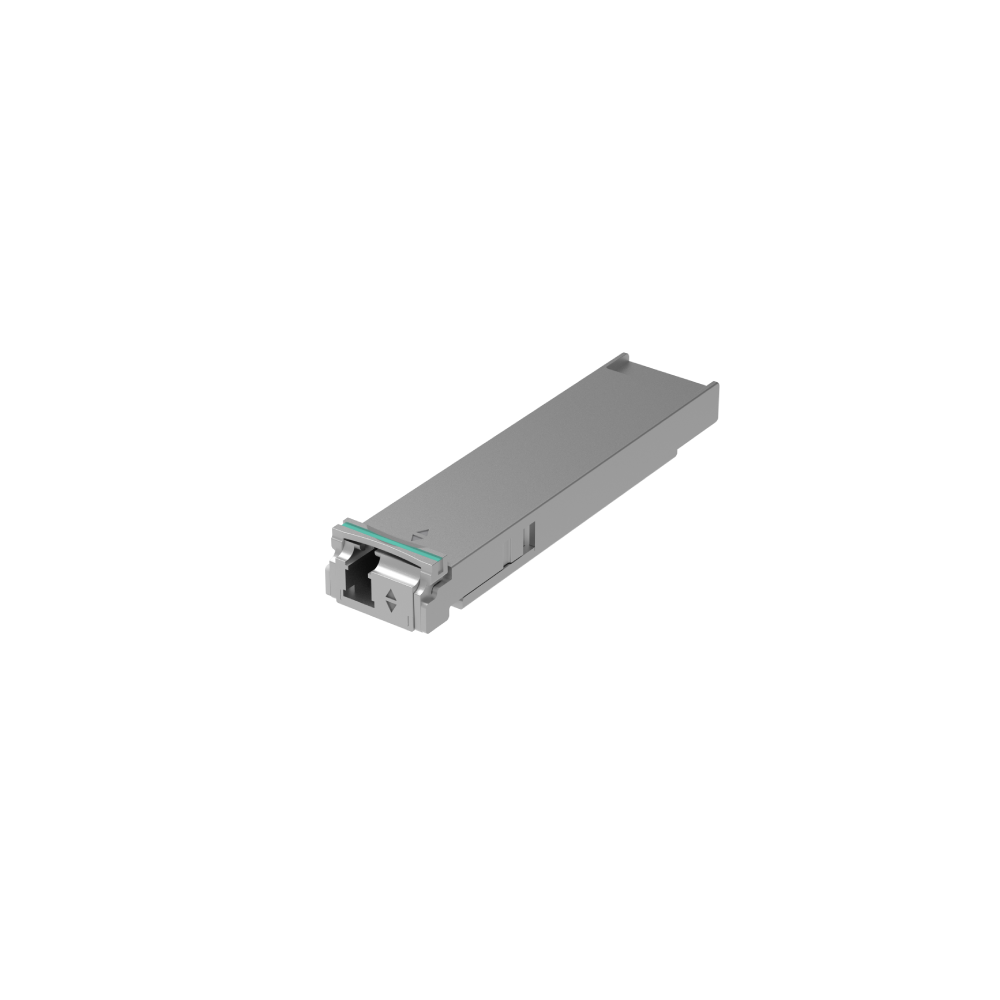

JHXPB-23(32)96-40L
10Gb/s BIDI XFP 40km Transceiver

PRODUCT FEATURES
Hot-pluggable XFP footprint
Supports 9.95Gb/s to 11.3Gb/s bit rates
XFI Loopback Mode
RoHS-6 Compliant (lead-free)
1270nm DFB laser and PIN receiver for JHXPB-2396-40L
1330nm DFB laser and PIN receiver for JHXPB-3296-40L
Power dissipation<2W
Case operating temperature 0 ºC~70ºC
Up to 40km transmission on SMF
2-wire interface with integrated Digital Diagnostic monitoring
EEPROM with Serial ID Functionality
Compliant with XFP MSA with LC connector

APPLICATIONS
10GBASE-BX 10.3125Gb/s Ethernet
10GBASE-BX 9.953Gb/s Ethernet
SONET OC-192 &SDH STM I-64.1


PRODUCT DESCRIPTION
JHXPB-23(32)96-40L is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 11.3Gb/s, it designed to be compliant with XFP MSA. The module data link up to 40km in 9/125um single mode fiber.
